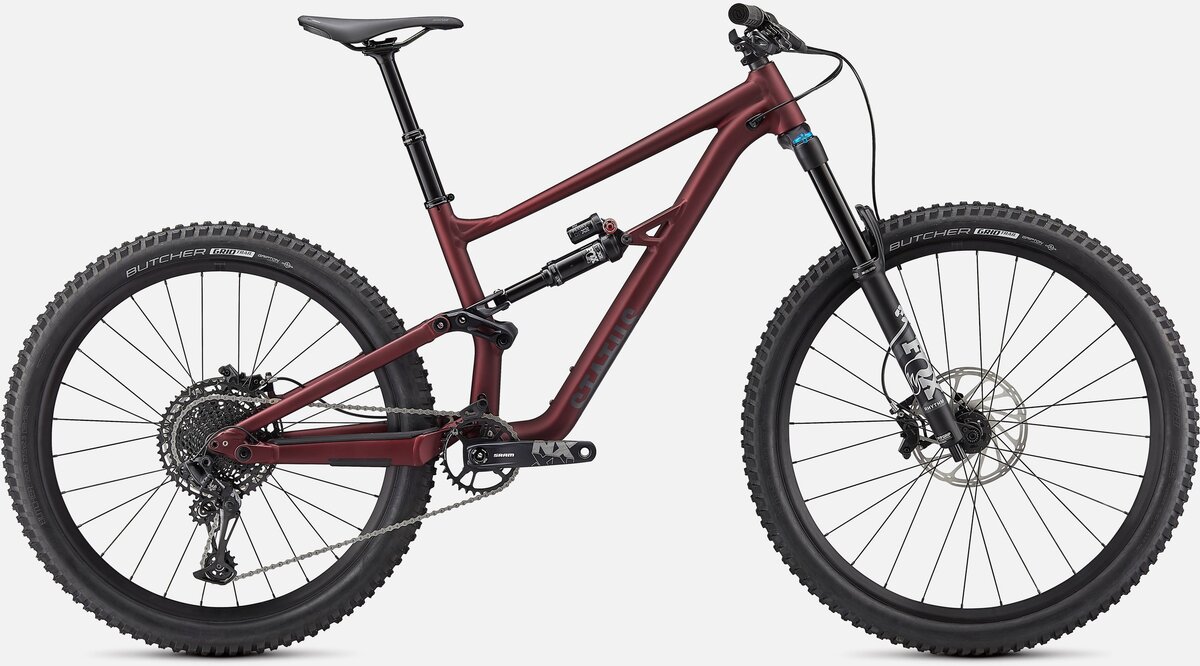

The Status 160 may be an all-new bike, but it’s really an all-new way of thinking about how to have the most fun possible on two wheels—even if that means they’re different sizes.
Focused on fun and featuring our Mixed-Wheel Trail Geometry, the Status frameset is a fewer frills, all thrills FSR delivery system crafted from our hard-charging—and hard-wearing—M5 alloy and is designed not only to take a hit, but keep asking for more.
Fox’s FLOAT 36 Rhythm calls their venerable Grip damper into service in the name of adventurous riders everywhere, offering impressively controlled travel with plenty of trail-feel that puts confidence on speed dial. The two-position Sweep adjustment ensures the FLOAT 36 Rhythm is right at home dealing out its 160-millimeters of travel in just about any environment while 36-millimeter stanchions promise plenty of stiffness for precise handling at the limit.
Quality suspension unlocks some serious free speed, so to slow it all down, we tasked SRAM’s proven Code R brakes with stopping duties. Forged four-piston calipers offer serious stopping power, while 200-millimeter rotors on both ends of the bike promise plenty of fade-free bite when it matters.
|Frame||M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel|
|Fork||FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel|
|Rear Shock||FOX FLOAT DPX2 Performance, 230x60mm|
|Rims/Wheels||Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready|
|Hubs||Front: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h|
|Spokes||DT Swiss Industry|
|Tires||Front Tire Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Rear Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 27.5x2.3"|
|Crankset||SRAM NX Eagle, DUB, 170mm|
|Bottom Bracket||RAM DUB, BSA 73mm, Threaded|
|Chain||SRAM NX Eagle, 12-speed|
|Rear Derailleur||SRAM NX Eagle, 12-speed|
|Rear Cogs||SRAM NX Eagle, 12-speed, 11-50t|
|Shifters||SRAM NX Eagle, trigger, 12-speed|
|Handlebars||Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width|
|Tape/Grips||Deity, Knuckleduster, Black|
|Stem||Alloy Trail Stem, 35mm bar bore|
|Brakes||SRAM Code R, 4-piston caliper, hydraulic disc, 200mm|
|Saddle||Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm|
|Seat Post||X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, S1:125, S2: 150mm, S3/S4/S5: 170mm|
|Seat Binder||Alloy, 38.6mm|
* Subject to change without notice.
|Maroon/Charcoal / S1|
|Maroon/Charcoal / S2|
|Maroon/Charcoal / S3||888818647323||93720-5303||210000008591|
|Maroon/Charcoal / S4|
|Maroon/Charcoal / S5|
