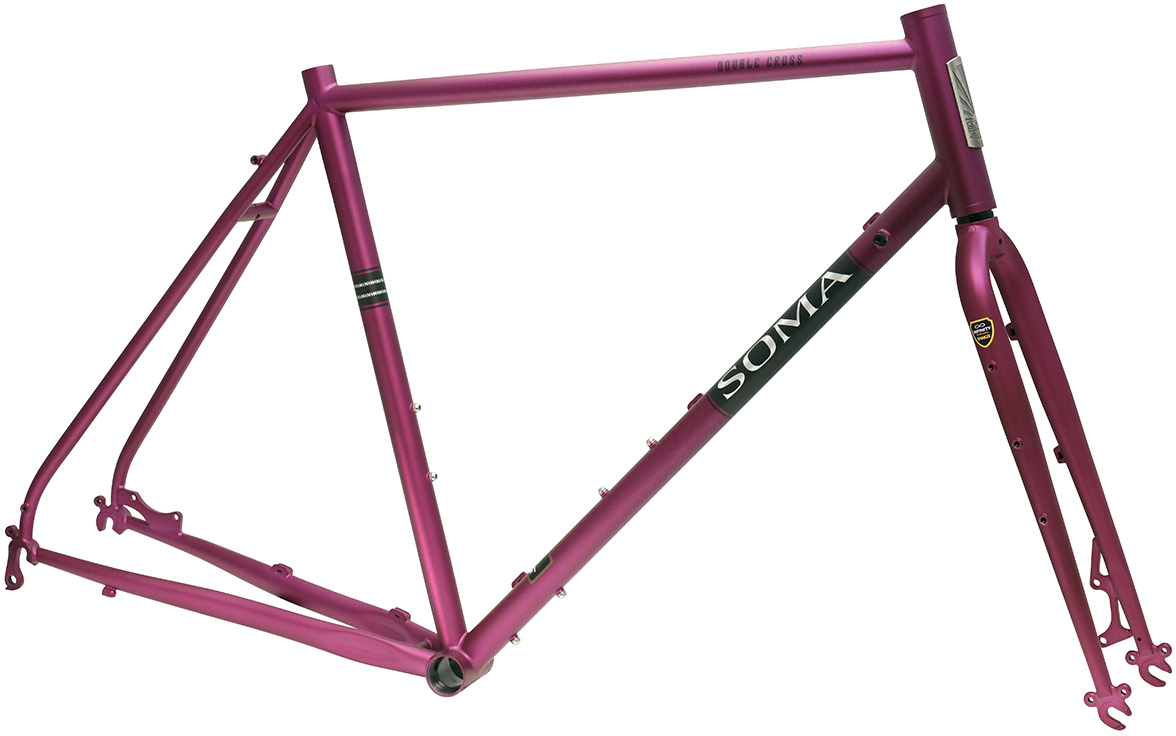

Soma Double Cross Disc Frame
Details
A great do-all frame. Ready for CX, trail-riding, long road rides, commuting, and medium-duty loaded touring. Comes in a wide range of sizes to fit you right -- up to 66cm!
For the latest version, we have tweaked the geometry to make it an even better all-rounder. Slacker headtube angle for less twitchy handling in gravel and off-road descents. Lower bottom bracket height for more on-road stability loaded or unloaded. Improved mud clearance for 650b x 47mm tires
- Updated geometry with a slightly shorter top tube and taller head tube in some sizes
- Double rear rack and fender mounts and clearance for 38c tires with fenders
- Extra tall head tube reduces the need for headset spacers
- Rear hub spacing: 135mm QR with International Standard disc brake mounts
- Redesigned disc mount area for improved brake clearance
- Electrophoretic deposition coated to protect against rust
- Soma disc Cross fork sold separately, use SF3029
| Size | 46 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 66 |
|---|---|---|---|---|---|---|---|---|---|
| Seat Tube (mm) | 460 | 500 | 520 | 540 | 560 | 580 | 600 | 620 | 660 |
| Top Tube, Effective (mm) | 526 | 540 | 550 | 560 | 570 | 585 | 601 | 612 | 627 |
| Head Tube Angle | 71° | 71° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat Tube Angle | 75° | 74° | 73.5° | 73° | 73° | 72.5° | 72.5° | 72.5° | 72.5° |
| Chainstay Length (mm) | 425 | 425 | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| Headtube Length (mm) | 120 | 130 | 140 | 155 | 170 | 185 | 200 | 210 | 240 |
| Bottom Bracket Drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 | 66 | 66 | 66 |
| Standover Height (in) | 29.4 | 30.4 | 30.9 | 31.6 | 32.3 | 32.9 | 33.6 | 34.2 | 35 |
| Front Center (mm) | 596 | 599 | 599 | 604 | 614 | 624 | 640 | 652 | 667 |
| Wheelbase (mm) | 1008 | 1013 | 1014 | 1019 | 1029 | 1039 | 1055 | 1068 | 1084 |
| Frame Stack (mm) | 557 | 567 | 577 | 592 | 607 | 624 | 635 | 640 | 669 |
| Frame Reach (mm) | 376 | 377 | 377 | 379 | 384 | 395 | 402 | 410 | 416 |
| Fork Rake (mm) | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| 46 | 5'2" - 5'6" | 157 - 168 |
| 50 | 5'5" - 5'8" | 165 - 173 |
| 52 | 5'7" - 5'10" | 170 - 178 |
| 54 | 5'8" - 5'11" | 173 - 180 |
| 56 | 5'10" - 6'1" | 178 - 185 |
| 58 | 5'11" - 6'2" | 180 - 188 |
| 60 | 6'1" - 6'4" | 185 - 193 |
| 62 | 6'3" - 6'6" | 191 - 198 |
| 66 | 6'5" - 6'9" | 196 - 205 |
Specs
| Frame | Tange Prestige heat-treated CrMo steel front triangle; butted CrMo rear end |
|---|---|
| Fork | Sold Separately |
| Pedals | Sold Separately |
| Weight | 4.3 lbs (54cm) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Matte Purple / 54cm | 849430048837 | 910004 |
| Matte Purple / 56cm | 849430048844 | 910005 |
| Matte Purple / 58cm | 849430048851 | 910006 |
